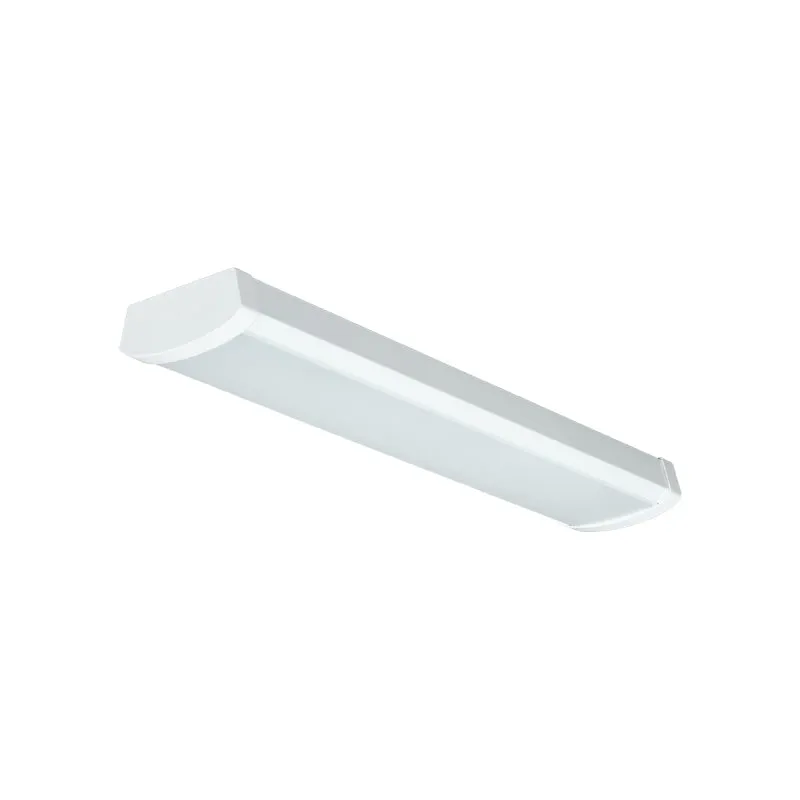

Energetic Lighting's E3WR series of LED surface mount wraps showcase a simple yet elegant fixture form factor while delivering up to 4680 lumens in either a 2-ft or 4-ft length profile, while drawing only 20 and 40 watts of power, respectively.
Features
- Finish: White
- Wattage: 20W
- Voltage: 120-277V
- Color Temperature: 3500K, 4000K, 5000K
- Lumens: 2280, 2300, 2320
- CRI: 82
- 0-10v Dimming
- Easy wiring compartment access using the supplied suction cup, included in every unit package
- Pass-through single-wall wiring with integrated wire hold-down points provide easy and quick wiring as well as clean wire routing within the interior compartment

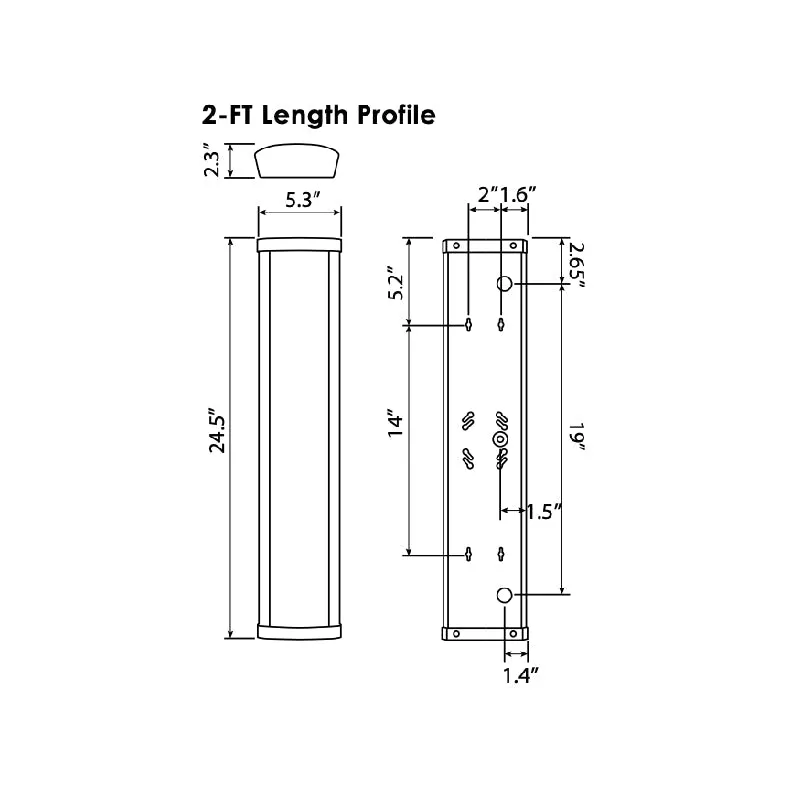

Dimensions
- Length: 24.5"
- Width: 2.3"
- Height: 5.3"
- Weight: 3 lbs
Estimated Life
- Minimum 92% lumen maintenance @ 36,000 hours L92/36,000 (per IES TM21)
- Minimum projected L70 @ 161,000 hours = maintenance free illumination (per IES TM21)
Warranty
- 10-year limited warranty.
